Optical Microscopes

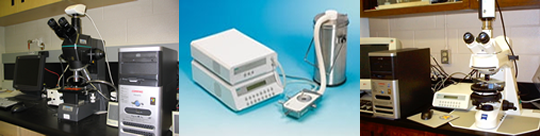

1. The Mitutoyo FS70 high-resolution optical microscope is equipped with infinity corrected optical lens, ACE I fiber-optic light source, Leica DC300 digital camera, and Vision Gauge software.

Features and Benefits:

•  Ideal inspection tool: The FS70 has optimal characteristics for inspecting particles, or precision-manufactured parts with 1000x magnification capability and high-resolution imaging

•  ACE I fiber-optic light source: EKE Ace I provides auxiliary stage lighting for maximum quality visualization

•  Long working distance: The FS series microscopes are equipped with infinity corrected optical lens featuring ultra-long working distance, and wide-ranging field of view

•  Vision Gauge Software: Vision Gauge is a powerful and easy-to-use product to capture, manipulate, analyze, store, and output images and data for quick report generation

back to the top

2. The Zeiss Axioskop40 optical microscope has a digital camera and a Linkam temperature control system optimized for sample analysis, and easy sample access. The system includes the highly stable LTS350 heating/freezing stage.

Features and Benefits:

•  Leading optics: uncompromising quality from Carl Zeiss with Varel and Oblique illumination and high-end fluorescence for outstanding contrast, and highest transmission

• Linkam Analyst Dynamics System: Featuring the LTS350 temperature stage and TMS94 temperature programmer

• The TMS94 Features: Controlled heating and cooling rates of 0.01°C; up to 32 ramps in one programmable profile; hold time of 0 - 9999 mins; RS232 interface to allow programming by Linksys 32 software

•  The LTS350 Features: Versatile heating/freezing stage with 0.01°C thermal stability; (-196°C - 350°C) temperature range; platinum resistor sensor for accurate temperature measurements; gas tight chamber; and a specially designed copper sample cover lid for uniform thermal environment
